Name: Hot Dipped Galvanized 9m 10m LED Street Light Pole
Brand: Yahua lighting
Price: 90 USD

Brand Name : Yahua lighting

Model Number : YHZ-LP

Certification : CE ROHS

Place of Origin : China

MOQ : 30pcs

Price : USD90-USD120

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs

Delivery Time : 5-8Days

Packaging Details : Foam

Item type : Light pole

Warranty(year) : 10

Application : ROAD,Roadway,outdoor,park Highway

Lamp body material : Q235 Steel

Standard : ASTM

street light pole : Hot galvanized pole

Contact Now

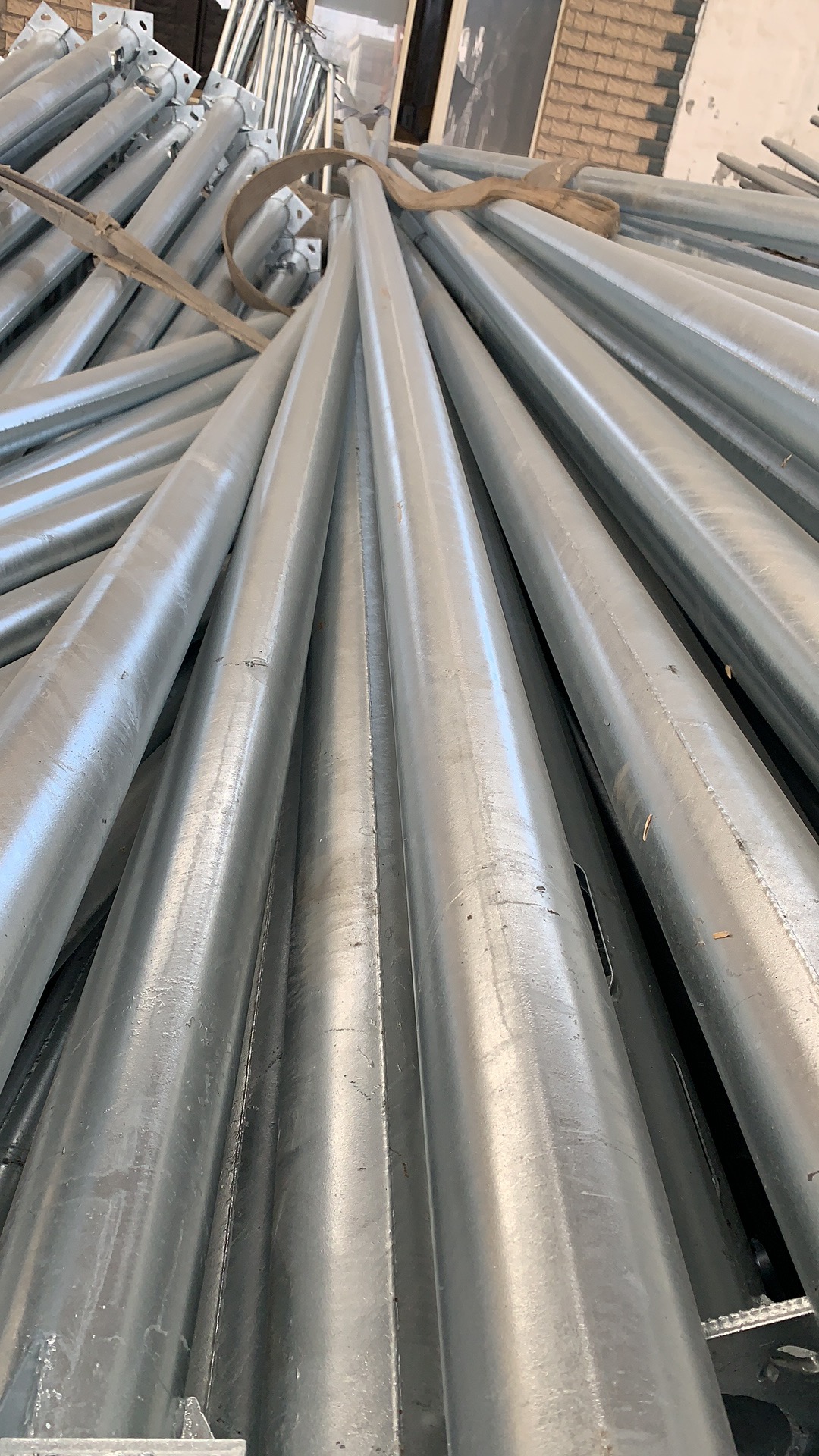

9m 10m Single double arm hot dipped galvanized light pole

Type	Street Lamp pole, lamp post, Lamp column, Street Light Pole
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	±0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal tapered column Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
Suit for	Highway Roadway Residential subdivisions Commercial development
Option	Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm.
Production Process	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→ Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→ Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required
Warranty	At least 20 years.

Hot Dipped Galvanized 9m 10m LED Street Light Pole
